TS50 Compact Track Loader

Product specification

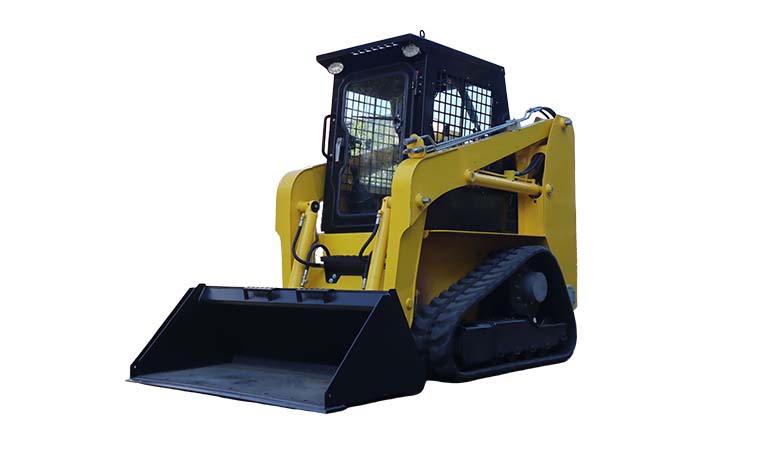

TS50 Compact Track Loader

Wholesale TS50 compact track loader (CTL). Powered by 36.7 kW Xinchai engine, featuring 700kg rated load, 1402mm narrow width, and low ground pressure for soft soil.

Request a quote →
Technical informationProduct details

TS50 Compact Track Loader | Mid-Sized 700kg Tracked Skid Steer

The TS50 Compact Track Loader (CTL) is a heavy-duty, versatile tracked skid steer engineered for high-flotation performance on mud, loose sand, slopes, and unpaved terrain. Driven by a dependable 36.7 kW Xinchai C490BPG diesel engine, the TS50 combines a 700 kg rated operating load with a compact 1402 mm machine width, delivering powerful pushing force and superior terrain mobility for contractors and equipment dealers looking for maximum ROI.

Key Performance Highlights

  • Exceptional All-Terrain Flotation: The high-grip rubber track undercarriage distributes the 3,000 kg operating weight, preventing sinkage in swampy, muddy, or sandy worksites.
  • Proven Xinchai Power: Powered by the 36.7 kW Xinchai C490BPG engine, offering excellent torque reserves, fuel efficiency, and easy access to maintenance parts globally.
  • High Traction & Digging Performance: Generates over 25.4 kN max traction force and ≥18.4 kN breakout force for smooth excavation, grading, and heavy pushing.
  • Compact Maneuverability: Features a 1402 mm machine width and a tight front turning radius, making it ideal for restricted access sites, forest trails, and muddy farmyards.

Technical Specifications

ParameterSpecification
ModelTS50
Operating Weight3,000 kg
Rated Operating Capacity700 kg
Bucket Capacity0.3 m³
Engine Manufacturer / ModelXinchai / C490BPG
Rated Power36.7 kW @ 2650 rpm
Engine Displacement2.27 L
Emission StandardChina Stage II
Max Travel Speed10 km/h
Max Breakout Force≥ 18.4 kN
Max Traction Force≥ 25.40 kN
Boom Lifting Time7.0 s
Overall Operating Height (A)3,350 mm
Height to Bucket Hinge Pin (B)2,450 mm
Height to Top of Cab (C)2,050 mm
Overall Width (T)1,402 mm
Bucket Width (U)1,500 mm
Track Base / Wheelbase (L)1,240 mm
Ground Clearance (M)140 mm

Applications & Key Advantages

  • Muddy & Soft Ground Earthmoving: Outperforms traditional wheel loaders on wet clay, riverbanks, and swampy construction sites.
  • Agriculture & Forestry Utility: Clearing thick brush, moving timber, and navigating soft farm fields without tearing up subsoil.
  • General Construction & Landscaping: Material transport, site grading, and trench backfilling under all weather conditions.
  • Target Export Regions: South America, Southeast Asia, Africa, Middle East, and CIS countries.
