TS65 Compact Track Loader | Heavy-Duty 1-Ton Tracked Skid Steer

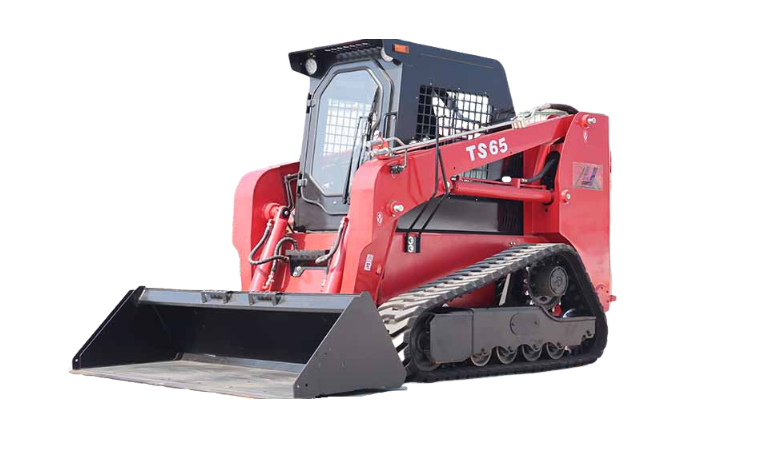

The TS65 Compact Track Loader (CTL) is a high-performance, 1-ton rated heavy-duty tracked loader built to dominate unstable, muddy, and challenging worksites. Powered by a high-torque 55 kW Xinchai A498BZG/T turbocharged engine, the TS65 combines a 1,000 kg rated operating capacity, ≥28.2 kN traction force, and a 12/18 km/h two-speed travel system—delivering maximum productivity, stability, and pushing power for heavy bulk material handling and forestry earthmoving.
Key Performance Highlights
- 1-Ton Rated Load & 0.5 m³ Capacity: Built with an operating weight of 4,200 kg and a 1,000 kg rated capacity, allowing efficient loading of heavy gravel, wet earth, and aggregate stockpiles.
- 55 kW High-Torque Turbocharged Engine: Driven by the robust Xinchai A498BZG/T engine (3.17 L displacement), providing heavy hydraulic power reserves for high-demand hydraulic attachments.
- Dual-Speed Travel System (12/18 km/h): Offers seamless switching between low-speed heavy pushing and high-speed site transit, significantly reducing job cycle times over large yards.
- High Dump Clearance & Superior Traction: Features a 2,900 mm bucket hinge pin height and 2,230 mm dumping height, while wide rubber tracks deliver over 28.2 kN traction force without sinking into soft soil.
Technical Specifications
| Parameter | Specification |
| Model | TS65 |
| Operating Weight | 4,200 kg |
| Rated Operating Capacity | 1,000 kg |
| Bucket Capacity | 0.5 m³ |
| Engine Manufacturer / Model | Xinchai / A498BZG/T |
| Rated Power | 55 kW @ 2500 rpm |
| Engine Displacement | 3.17 L |
| Emission Standard | China Stage II |
| Max Travel Speed | 12 / 18 km/h (Two-Speed System) |
| Max Breakout Force | ≥ 20 kN |
| Max Traction Force | ≥ 28.2 kN |
| Boom Lifting Time | 7.0 s |
| Overall Operating Height (A) | 3,871 mm |
| Height to Bucket Hinge Pin (B) | 2,900 mm |
| Height to Top of Cab (C) | 2,150 mm |
| Dumping Height (H) | 2,230 mm |
| Dumping Reach (I) | 715 mm |
| Overall Width (T) | 1,782 mm |
| Bucket Width (U) | 1,880 mm |
| Track Base / Wheelbase (L) | 1,500 mm |
| Ground Clearance (M) | 200 mm |
Applications & Key Advantages
- Heavy Earthmoving & Roadwork: Pushing, grading, and excavation in wet clay, bogs, and unpaved infrastructure sites.
- Forestry & Brush Clearing: Drives high-flow hydraulic attachments like heavy rotary cutters, land clearing mulchers, and trenchers.
- Mining & Bulk Material Handling: Efficiently transfers ore, sand, and aggregate into high-sided haul trucks and hoppers.
- Target Export Regions: South America, Southeast Asia, Middle East, Africa, and CIS countries.
