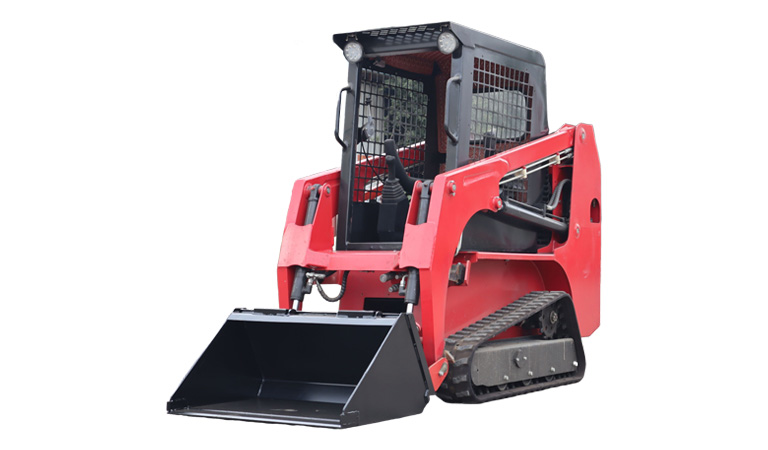

TS25 Compact Track Loader | Mini Tracked Skid Steer with Kubota Engine
The TS25 Compact Track Loader (CTL) is an ultra-compact, high-flotation tracked skid steer engineered for soft soils, muddy job sites, turf protection, and tight-space operations. Powered by a dependable Kubota D1105 diesel engine (EPA Tier 4 / Euro Stage V compliant), the TS25 delivers a 400 kg rated operating load combined with a narrow 1080 mm machine width, making it an essential solution for landscaping, residential construction, and farm utility work where minimal ground disturbance is required.
Key Performance Highlights
- EPA Tier 4 & Euro Stage V Engine: Equipped with a Japanese Kubota D1105 engine (18.2 kW), meeting strict emission standards for hassle-free import into North American and European markets.
- Superior All-Terrain Flotation: Rubber track drive system distributes operating weight (1,530 kg) evenly to prevent ground rutting, providing superior traction over mud, sand, wet clay, and delicate turf.
- Ultra-Compact Access: At just 1080 mm overall width and a 960 mm front turning radius (without bucket), the TS25 effortlessly navigates narrow gates, backyards, and indoor sites.
- High Traction & Reach: Generates ≥15 kN max traction force with a 2,500 mm bucket hinge pin height and 2,000 mm dumping height for smooth loading into utility trailers and hoppers.
Technical Specifications
| Parameter | Specification |
| Model | TS25 |
| Operating Weight | 1,530 kg |
| Rated Operating Capacity | 400 kg |
| Bucket Capacity | 0.2 m³ |
| Engine Manufacturer / Model | Kubota / D1105 |
| Rated Power | 18.2 kW @ 3000 rpm |
| Engine Displacement | 1.123 L |
| Emission Standard | EPA Tier 4 / Euro Stage V |
| Max Travel Speed | 9 km/h |
| Max Breakout Force | ≥ 7.3 kN |
| Max Traction Force | ≥ 15 kN |
| Boom Lifting Time | 7.0 s |
| Overall Operating Height (A) | 3,400 mm |
| Height to Bucket Hinge Pin (B) | 2,500 mm |
| Height to Top of Cab (C) | 1,813 mm |
| Overall Width (T) | 1,080 mm |
| Bucket Width (U) | 1,100 mm |
| Wheelbase / Track Base (L) | 801 mm |
| Ground Clearance (M) | 145 mm |
Applications & Key Advantages
- Landscaping & Turf Maintenance: Moves soil, gravel, and mulch over manicured lawns without tearing up the grass.
- Muddy & Soft Ground Earthmoving: Outperforms wheeled loaders on wet clay, boggy construction sites, and loose sand.
- Residential & Pool Construction: Accesses tight backyards through standard pedestrian side gates.
- Target Export Regions: North America, Europe, Australia, and global high-emission-standard markets.
