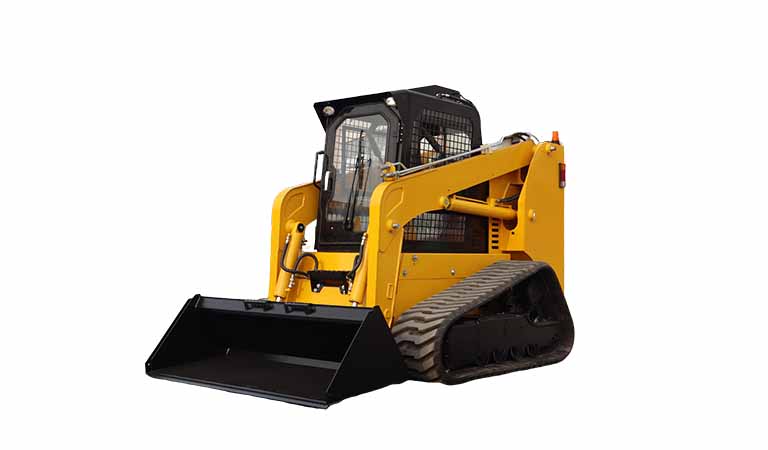

TS125 Compact Track Loader | Ultimate 1.5-Ton Ultra Heavy-Duty Tracked Loader
The TS125 Compact Track Loader (CTL) is the pinnacle of performance in our tracked loader lineup, specifically built for extreme-duty applications in mining, heavy forestry clearing, bulk port handling, and massive earthmoving operations. Driven by a high-output 103 kW Weichai WP4.1 engine, the TS125 delivers an impressive 1,500 kg rated operating capacity, >32 kN traction force, ≥22 kN breakout force, and a 12/18 km/h two-speed travel system—combining ultimate ground flotation with unmatched pushing and digging capacity.
Key Performance Highlights
- 103 kW Peak Horsepower: Powered by the 4.088 L Weichai engine outputting 103 kW @ 2300 rpm, offering abundant auxiliary hydraulic flow to effortlessly operate high-demand hydraulic attachments like forestry mulchers, cold planers, and rock saws.
- 1.5-Ton Maximum Payload: Boasts a 5,100 kg operating weight and a 1,500 kg rated operating capacity with a 0.6 m³ bucket, enabling fast cycle times and maximum tonnage moved per shift.
- Unbeatable Ground Traction: Rubber track undercarriage delivers superior weight distribution across soft bogs, mud, and sand, generating >32 kN traction force without getting bogged down.
- Dual-Speed Productivity: Reaches up to 18 km/h in high-speed travel, allowing rapid movement across expansive job sites, quarries, and logistics yards.
Technical Specifications
| Parameter | Specification |
| Model | TS125 |
| Operating Weight | 5,100 kg |
| Rated Operating Capacity | 1,500 kg |
| Bucket Capacity | 0.6 m³ |
| Engine Manufacturer / Model | Weichai / WP4.1 |
| Rated Power | 103 kW @ 2300 rpm |
| Engine Displacement | 4.088 L |
| Emission Standard | China Stage III |
| Max Travel Speed | 12 / 18 km/h (Two-Speed System) |
| Max Breakout Force | ≥ 22 kN |
| Max Traction Force | > 32 kN |
| Boom Lifting Time | 7.0 s |
| Overall Operating Height (A) | 4,070 mm |
| Height to Bucket Hinge Pin (B) | 3,150 mm |
| Height to Top of Cab (C) | 2,160 mm |
| Dumping Height (H) | 2,450 mm |
| Dumping Reach (I) | 700 mm |
| Overall Width (T) | 2,124 mm |
| Bucket Width (U) | 2,134 mm |
| Track Base / Wheelbase (L) | 1,500 mm |
| Ground Clearance (M) | 200 mm |
Applications & Key Advantages
- Mining, Quarries & Aggregates: Moving heavy ore, rocks, and raw materials over steep, unpaved terrain and mud.
- Heavy Forestry & Land Clearing: Driving high-flow mulchers to clear dense timber, vegetation, and stumps in soft ground conditions.
- Bulk Material Yards & Infrastructure: Rapidly handling aggregate loading, deep trench backfilling, and site development under all weather conditions.
- Target Export Regions: South America, Southeast Asia, Middle East, Africa, and CIS countries.
