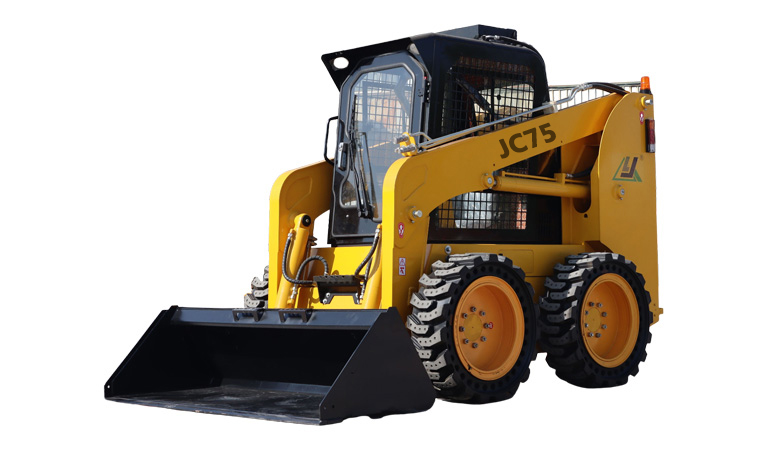

JC75 Wheel Skid Steer Loader | Heavy-Duty 1-Ton Rated Load Machine
The JC75 Wheeled Skid Steer Loader is a high-capacity, heavy-duty loader designed for demanding earthmoving, material handling, road construction, and industrial operations. Powered by a high-torque 55 kW turbocharged Xinchai A498BZG engine, the JC75 offers a full 1,050 kg rated operating load, an extended 3,278 mm hinge pin height, and 20 kN breakout force—making it the ultimate high-reach, heavy-payload machine for global contractors and equipment dealers.
Key Performance Highlights
- 1-Ton Rated Payload Capacity: Engineered to handle full 1050 kg loads efficiently with a 0.5 m³ capacity bucket, accelerating heavy material bulk transport per pass.
- Turbocharged Hydraulic Power: Powered by a 55 kW @ 2500 rpm turbocharged diesel engine that delivers reserve power and continuous hydraulic flow for demanding attachments.
- Industry-Leading Reach & Dump Height: Features a 3278 mm bucket hinge pin height and 2500 mm dumping height for effortless clearance when loading high-sided dump trucks and hoppers.
- Rugged All-Terrain Frame: Built with a 205 mm ground clearance and 28.2 kN traction force to maintain stability and pushing power on rough, unpaved job sites.
Technical Specifications
| Parameter | Specification |
| Model | JC75 |
| Operating Weight | 3,460 kg |
| Rated Operating Capacity | 1,050 kg |
| Bucket Capacity | 0.5 m³ |
| Engine Manufacturer / Model | Xinchai / A498BZG/T (Turbo) |
| Rated Power | 55 kW @ 2500 rpm |
| Engine Displacement | 3.17 L |
| Emission Standard | China Stage II |
| Max Travel Speed | 12 km/h |
| Max Breakout Force | ≥ 20 kN |
| Max Traction Force | ≥ 28.2 kN |
| Boom Lifting Time | 7.0 s |
| Overall Operating Height (A) | 4,290 mm |
| Height to Bucket Hinge Pin (B) | 3,278 mm |
| Height to Top of Cab (C) | 2,160 mm |
| Dumping Height (H) | 2,500 mm |
| Overall Width (T) | 1,880 mm |
| Bucket Width (U) | 1,880 mm |
| Wheelbase (L) | 1,115 mm |
| Ground Clearance (M) | 205 mm |
Versatile Applications & Target Markets
- High-Volume Earthmoving & Excavation: Quarry aggregate moving, site clearing, and high-side tipper loading.
- Heavy Roadwork & Municipal Engineering: Cold planing, road sweeping, trenching, and asphalt repair.
- Large-Scale Agriculture & Mining: Grain storage transfer, heavy manure loading, and mineral transport.
- Target Export Regions: South America, Southeast Asia, Middle East, Africa, and CIS countries.
