JC120 Wheel Skid Steer Loader | Ultra Heavy-Duty 1.5-Ton Capacity Loader

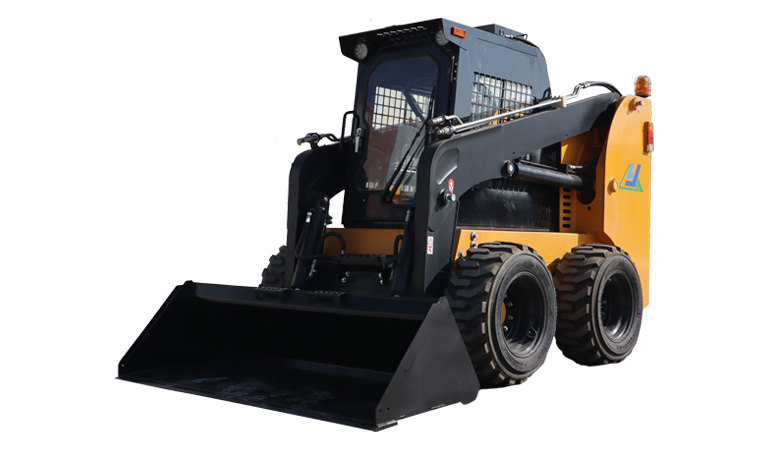

The JC120 Wheeled Skid Steer Loader is the top-of-the-line, ultra heavy-duty model engineered for the most demanding mining, infrastructure, heavy forestry, and bulk material handling jobs. Powered by a high-output 103 kW Weichai WP4.1 diesel engine, the JC120 delivers an impressive 1,500 kg rated operating load, >32 kN traction force, and ≥22 kN breakout force—offering unprecedented power, stability, and productivity for heavy-cycle industrial applications.
Key Performance Highlights
- 103 kW High-Horsepower Engine: Driven by a powerful 4.088 L Weichai engine outputting 103 kW @ 2300 rpm, delivering huge hydraulic flow reserves to run high-demand attachments such as heavy rock saws, forestry mulchers, and cold planers.
- 1.5-Ton Payload Capacity: Handles up to 1500 kg rated load with a 0.6 m³ bucket, significantly reducing cycle counts and increasing tonnage moved per hour.
- Exceptional Traction & Breakout: Generates >32 kN traction force and ≥22 kN breakout force to easily push, dig, and grade through compacted earth, wet gravel, and rock piles.
- Dual-Speed Efficiency: Features a two-speed transmission reaching up to 18 km/h, allowing quick mobility across large job sites, ports, and mining yards.
Technical Specifications
| Parameter | Specification |
| Model | JC120 |
| Operating Weight | 3,900 kg |
| Rated Operating Capacity | 1,500 kg |
| Bucket Capacity | 0.6 m³ |
| Engine Manufacturer / Model | Weichai / WP4.1 |
| Rated Power | 103 kW @ 2300 rpm |
| Engine Displacement | 4.088 L |
| Emission Standard | China Stage III |
| Max Travel Speed | 12 / 18 km/h (Two-Speed Option) |
| Max Breakout Force | ≥ 22 kN |
| Max Traction Force | > 32 kN |
| Boom Lifting Time | 7.0 s |
| Overall Operating Height (A) | 4,290 mm |
| Height to Bucket Hinge Pin (B) | 3,278 mm |
| Height to Top of Cab (C) | 2,160 mm |
| Dumping Height (H) | 2,500 mm |
| Overall Width (T) | 1,880 mm |
| Bucket Width (U) | 1,880 mm |
| Wheelbase (L) | 1,185 mm |
| Ground Clearance (M) | 205 mm |
Applications & Target Markets
- Mining, Quarries & Aggregates: Transporting ore, crushed stone, and bulk mineral stockpiles under harsh site conditions.
- Ports, Logistics & Bulk Material Yards: Loading and unloading heavy cargo, grain, and raw materials into hoppers and trucks.
- Heavy Roadwork & Forestry Operations: Driving high-flow hydraulic attachments like mulchers, stump grinders, and cold planers.
- Target Export Regions: South America, Southeast Asia, Middle East, Africa, and CIS countries.
