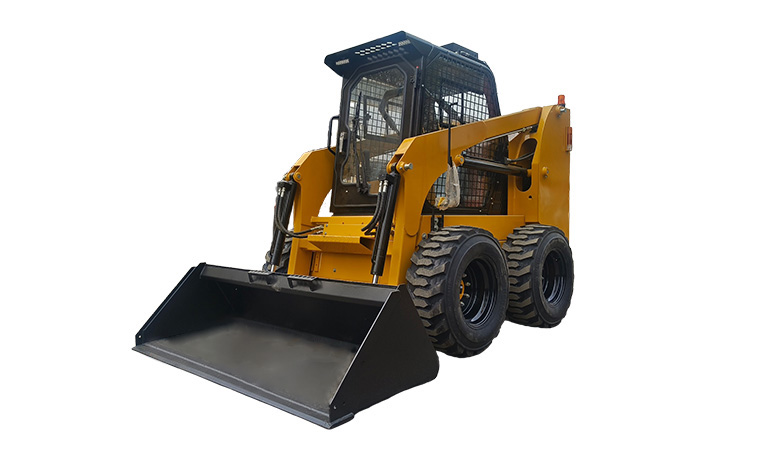

JC65 Wheel Skid Steer Loader | 950kg Heavy-Duty Turbocharged Machine
The JC65 Wheeled Skid Steer Loader is a powerful, heavy-duty compact loader engineered for high-intensity construction, roadwork, mining, and agricultural operations. Driven by a robust 55 kW turbocharged Xinchai A498BZG engine, the JC65 offers an impressive 950 kg rated operating load, a 0.5 m³ bucket capacity, and 20 kN breakout force—delivering maximum productivity and hydraulic pushing power under demanding conditions.
Key Performance Highlights
- Turbocharged Engine Output: Features a 55 kW @ 2500 rpm turbocharged diesel engine that provides exceptional hydraulic flow and torque reserves for heavy loading.
- Superior Payloads & Capacity: Supports up to 950 kg rated operating load paired with a large 0.5 m³ bucket to maximize material movement per pass.
- High Traction & Breakout Force: Delivers ≥28.2 kN traction force and ≥20 kN breakout force, making short work of compacted soil, asphalt, and aggregate mounds.
- Extended Reach & Dump Height: Offers a 3150 mm bucket hinge pin height and 2450 mm dumping height for efficient loading into high-capacity dump trucks and hoppers.
Technical Specifications
| Parameter | Specification |
| Model | JC65 |
| Operating Weight | 3,400 kg |
| Rated Operating Capacity | 950 kg |
| Bucket Capacity | 0.5 m³ |
| Engine Manufacturer / Model | Xinchai / A498BZG/T (Turbo) |
| Rated Power | 55 kW @ 2500 rpm |
| Engine Displacement | 3.17 L |
| Emission Standard | China Stage II |
| Max Travel Speed | 12 km/h |
| Max Breakout Force | ≥ 20 kN |
| Max Traction Force | ≥ 28.2 kN |
| Boom Lifting Time | 7.0 s |
| Overall Operating Height (A) | 4,070 mm |
| Height to Bucket Hinge Pin (B) | 3,150 mm |
| Height to Top of Cab (C) | 2,160 mm |
| Dumping Height (H) | 2,450 mm |
| Overall Width (T) | 1,880 mm |
| Bucket Width (U) | 1,880 mm |
| Wheelbase (L) | 1,115 mm |
| Ground Clearance (M) | 205 mm |
Applications & Target Markets
- Infrastructure & Road Construction: Pavement removal, trench backfilling, site leveling, and cold planer/sweeper attachment drive.
- Mining & Quarrying: Transporting gravel, ore fines, and heavy crushed rock over uneven terrain.
- Agriculture & Livestock Operations: Heavy feed distribution, manure handling, and silage loading.
- Target Export Regions: South America, Southeast Asia, Middle East, Africa, and CIS countries.
