JC35 Wheel Skid Steer Loader | High-Efficiency 500kg Capacity Loader

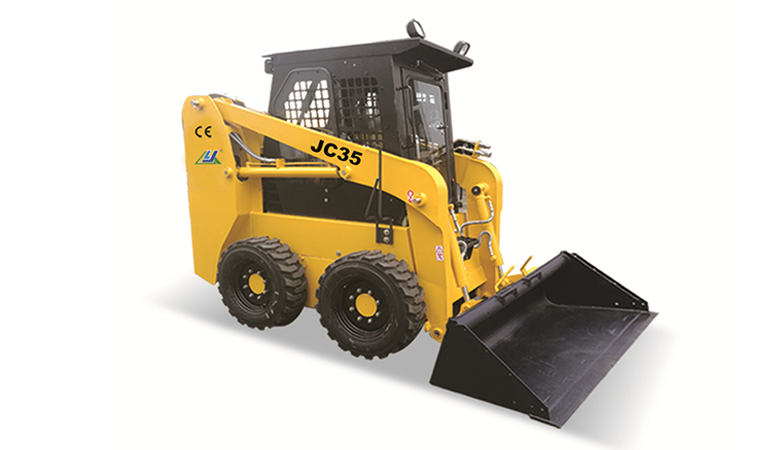

The JC35 Wheeled Skid Steer Loader is a versatile and heavy-duty compact loader designed for construction, agricultural material handling, road maintenance, and municipal engineering. Powered by a robust 36.7 kW Xinchai C490BPG diesel engine, this model delivers an exceptional balance of strong breakout force, high stability, and budget-friendly operational costs—making it an ideal choice for contractors and dealers looking for maximum ROI.
Key Performance Highlights
- Reliable Power Unit: Equipped with the widely adopted Xinchai C490BPG engine, offering 36.7 kW output and easy access to global maintenance parts.
- Optimized Working Capacity: Features a 500 kg rated operating load paired with a 0.3 m³ high-capacity bucket to handle bulk dirt, gravel, and heavy materials.
- Strong Traction & Breakout: Delivers over 8.5 kN breakout force and ≥16 kN traction force for smooth digging and grading on rough terrains.
- Durable Compact Structure: Features an overall width of 1400 mm and a tight front turning radius for superior stability in restricted worksites.
Technical Specifications
| Parameter | Specification |
| Model | JC35 |
| Operating Weight | 2,600 kg |
| Rated Operating Capacity | 500 kg |
| Bucket Capacity | 0.3 m³ |
| Engine Manufacturer / Model | Xinchai / C490BPG |
| Rated Power | 36.7 kW @ 2650 rpm |
| Engine Displacement | 2.27 L |
| Emission Standard | China Stage II |
| Max Travel Speed | 10 km/h |
| Max Breakout Force | ≥ 8.5 kN |
| Max Traction Force | ≥ 16 kN |
| Boom Lifting Time | 7.0 s |
| Overall Operating Height (A) | 3,300 mm |
| Height to Hinge Pin (B) | 2,425 mm |
| Height to Top of Cab (C) | 2,000 mm |
| Overall Width (T) | 1,400 mm |
| Bucket Width (U) | 1,422 mm |
| Wheelbase (L) | 897 mm |
| Ground Clearance (M) | 140 mm |
Key Applications & Target Markets
- General Construction & Earthmoving: Trench backfilling, site clearing, and aggregate loading.
- Agriculture & Livestock: Feed handling, manure cleaning, and bale transport across farmyards.
- Road & Municipal Works: Sweeping, trenching, and asphalt patching when combined with standard hydraulic attachments.
- Target Export Regions: South America, Southeast Asia, Africa, Middle East, and CIS countries.
