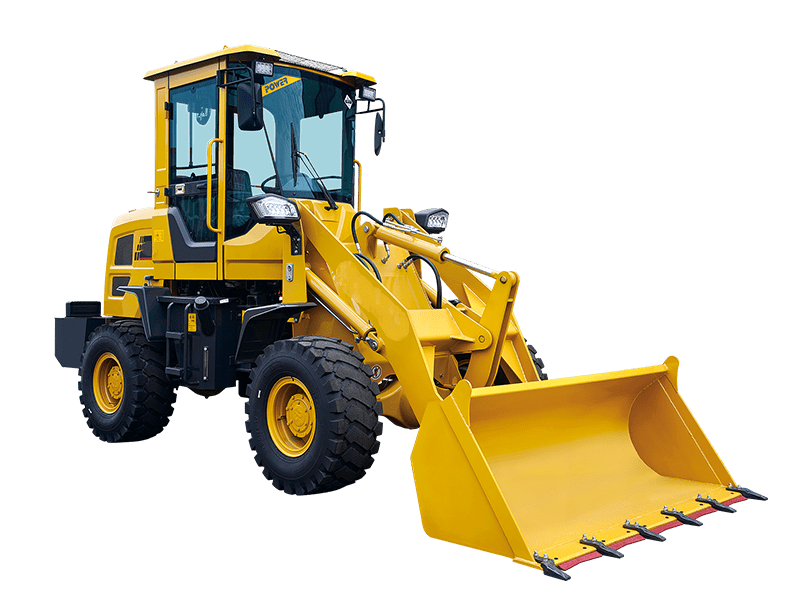

T920 Compact Wheel Loader: High-Efficiency 1.2 Ton Material Handler
The T920 Compact Wheel Loader delivers boosted performance with a 1.2-ton rated load capacity and an expanded 0.6 m³ bucket. Powered by a reliable 42 kW Sida 490 engine, this 2950 kg mini loader bridges the gap between ultra-compact units and larger heavy equipment. It provides higher lift clearance, increased stability, and rapid cycling for agricultural, construction, and material handling applications.
Key Features & Selling Points
- Increased Load Capacity: Safely handles up to 1,200 kg payload with an optimized 0.6 m³ standard bucket, speeding up bulk handling of gravel, soil, and grain.
- Superior Dump Height: Features a 2,800 mm unloading height and a 3,400 mm pin height, easily clearing high-sided trucks, mixers, and agricultural hoppers.
- Robust Chassis & Traction: Built with a 2150 mm wheelbase, 20.5-16 heavy-duty flotation tires, and LG1.5T wheel-side reduction axles for enhanced ground grip on soft terrain.
- Maneuverable Design: Maintains an agile 4000 mm turning radius, allowing high productivity in confined work zones and farm yards.
Specifications
| Specification Item | Metric Parameter |
| Rated Load Capacity | 1,200 kg |
| Operating Weight | 2,950 kg |
| Engine Model / Power | Sida 490 / 42 kW |
| Emission Standard | Stage-2 |
| Standard Bucket Capacity | 0.6 m³ |
| Overall Dimensions (L×W×H) | 5000 × 1800 × 2750 mm |
| Bucket Width | 1,850 mm |
| Max. Unloading Height | 2,800 mm |
| Unloading Reach | 750 mm |
| Bucket Pin Height | 3,400 mm |
| Min. Ground Clearance | 240 mm |
| Wheelbase / Track Width | 2150 mm / 1490 mm |
| Min. Turning Radius (Rear) | 4,000 mm |
| Axle / Tire Model | LG1.5T Small Wheel-Side / 20.5-16 |
