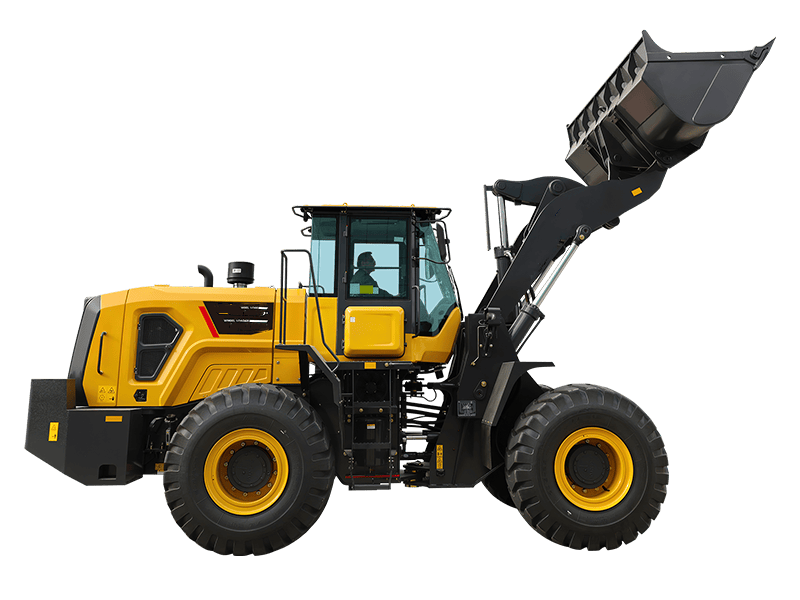

LM55-B5 Wheel Loader: High-Stability 5 Ton Heavyweight
The LM55-B5 Wheel Loader is engineered for high-intensity quarrying, mining, infrastructure development, and heavy bulk material loading. Powered by a high-torque 162 kW Weichai diesel engine, this robust 17.1-ton machine (17,100 kg operating weight) delivers a 5,000 kg payload capacity paired with a spacious 3.0 m³ standard bucket. Featuring an ultra-wide 3,450 mm tire outer width, a long 3,250 mm wheelbase, and an extended 1,120 mm dumping distance, the LM55-B5 ensures maximum breakout performance and unyielding stability on demanding job sites.
Key Features & Selling Points
- Heavy-Duty Weichai Engine: Driven by a reliable 162 kW Weichai Stage-2 engine, delivering continuous high-torque output for rapid digging cycles and heavy traction.
- Commercial 5-Ton Capacity: Built with an 17,100 kg operating weight and 5,000 kg rated capacity, combined with a 3.0 m³ bucket to maximize material handling per pass.
- Superior Ground Stability: Designed with an extra-wide 3,450 mm tire outer width, 2,238 mm track width, and a long 3,250 mm wheelbase to eliminate body tipping during high-load operations.
- Rugged All-Terrain Frame: Features a high 440 mm ground clearance and heavy-ply 23.5-25-16PR industrial tires to easily navigate unpaved, rocky, and muddy environments.
Specifications
| Specification Item | Metric Parameter |
| Rated Load Capacity | 5,000 kg |
| Operating Weight | 17,100 kg |
| Engine Model / Power | Weichai / 162 kW |
| Emission Standard | Stage-2 |
| Standard Bucket Capacity | 3.0 m³ |
| Overall Dimensions (L×W×H) | 8220 × 3450 × 3026 mm |
| Max. Unloading Height | 3,050 mm |
| Unloading Distance | 1,120 mm |
| Min. Ground Clearance | 440 mm |
| Wheelbase / Track Width | 3250 mm / 2238 mm |
| Min. Turning Radius | 6,626 mm |
| Tire Model | 23.5-25-16PR |
