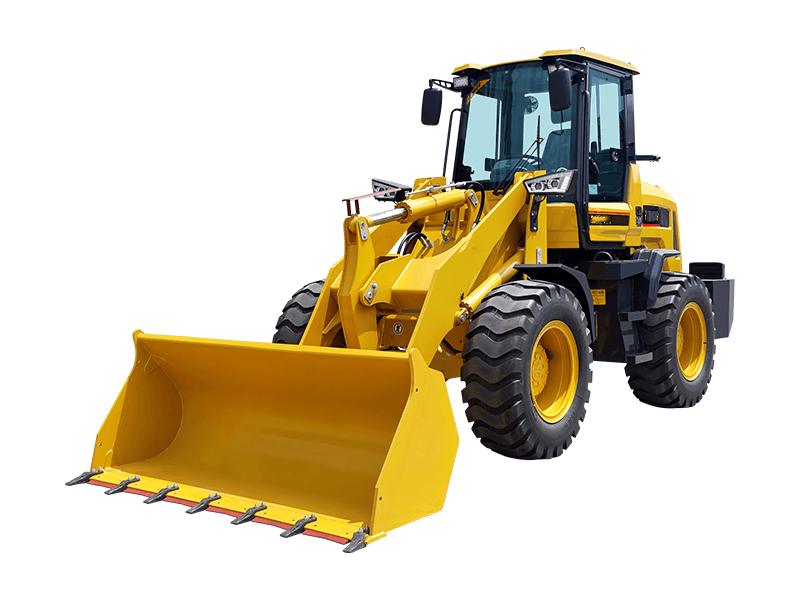

LG946 Wheel Loader: Heavy-Duty 2.8 Ton Workhorse
The LG946 Wheel Loader is built for intense material handling, earthmoving, and mining tasks that require high breakout force and heavy payload capacity. Powered by a high-performance 92 kW Deutz 6105 Turbo engine, this 8,200 kg heavy utility loader combines a 2,800 kg rated load capacity with a versatile 1.5–1.8 m³ bucket capacity. Equipped with LG2.9T large wheel-side axles and heavy-duty 17.5-25 tires, the LG946 delivers top-tier durability, traction, and loading speed on demanding job sites.
Key Features & Selling Points
- High-Output Deutz Powerhouse: Driven by a powerful 92 kW Deutz 6105 Turbocharged engine, delivering exceptional torque and fast hydraulic response under heavy loading conditions.
- Heavy-Duty 2.8-Ton Payload: Built with an 8,200 kg operating weight and 2,800 kg lift capacity, paired with a large 1.5–1.8 m³ bucket to maximize tonnage handled per hour.
- Reinforced Drivetrain & Chassis: Features a long 2,800 mm wheelbase, LG2.9T large wheel-side reduction axles, and an outstanding 430 mm ground clearance for extreme stability on rugged ground.
- High Reach & Extended Reach: Offers a 3,600 mm unloading height and an extended 850 mm unloading distance, ensuring safe, centered dump loading into high-capacity dump trucks and hoppers.
Specifications
| Specification Item | Metric Parameter |
| Rated Load Capacity | 2,800 kg |
| Operating Weight | 8,200 kg |
| Engine Model / Power | Deutz 6105 Turbo / 92 kW |
| Emission Standard | Stage-2 |
| Standard Bucket Capacity | 1.5 – 1.8 m³ |
| Overall Dimensions (L×W×H) | 6990 × 2150 × 3000 mm |
| Bucket Width | 2,480 mm |
| Max. Unloading Height | 3,600 mm |
| Unloading Reach | 850 mm |
| Bucket Pin Height | 4,330 mm |
| Min. Ground Clearance | 430 mm |
| Wheelbase / Track Width | 2800 mm / 1690 mm |
| Min. Turning Radius (Rear) | 6,000 mm |
| Axle / Tire Model | LG2.9T Large Wheel-Side / 17.5-25 |
