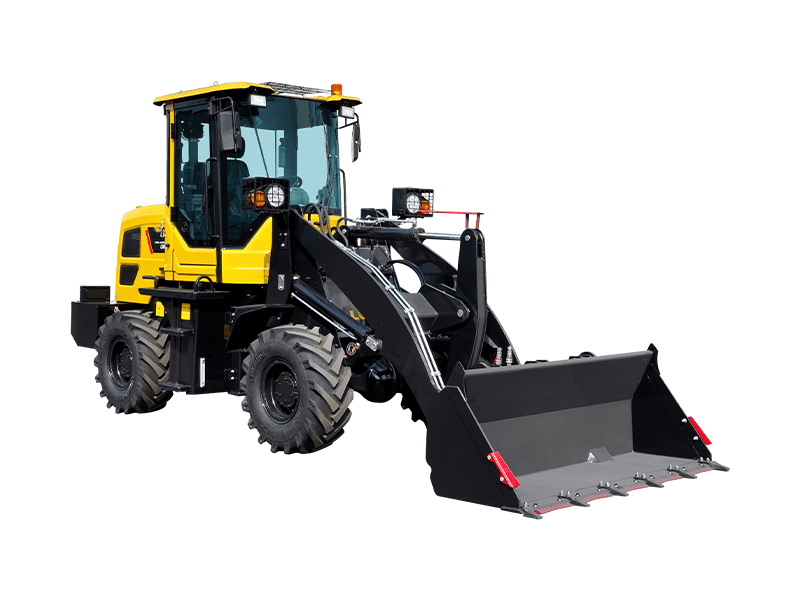

LG940 Wheel Loader: High-Reach 2.5 Ton Heavy Utility Loader
The LG940 Wheel Loader is built for high-capacity material handling, combining a strong 2,500 kg payload capacity with exceptional reach capabilities. Powered by a high-torque 85 kW YD4105 Turbo engine, this 6,500 kg utility machine features a generous 1.3 m³ standard bucket and an extra-high 3,800 mm unloading height. Equipped with heavy-duty LG2.8T wheel-side axles and large 16/70-24 tires, the LG940 provides maximum breakout force, ground traction, and cycle efficiency on rugged jobsites.
Key Features & Selling Points
- Turbocharged High-Power Engine: Driven by an 85 kW YD4105 Turbo diesel engine, delivering continuous high-torque output for demanding digging and loading cycles.
- Heavy-Duty 2.5-Ton Payload: Built with a 2,500 kg load capacity and a wide 1.3 m³ bucket, significantly increasing per-pass material handling efficiency.
- Industry-Leading Dump Clearance: Reaches an outstanding 3,800 mm unloading height and a 4,390 mm pin height, easily loading high-sided trucks, mixers, and agricultural feed hoppers.
- Heavy-Duty Chassis & Axles: Fitted with LG2.8T large wheel-side reduction axles, a long 2,700 mm wheelbase, and 380 mm ground clearance for superior off-road stability and durability.
Specifications
| Specification Item | Metric Parameter |
| Rated Load Capacity | 2,500 kg |
| Operating Weight | 6,500 kg |
| Engine Model / Power | YD4105 Turbo / 85 kW |
| Emission Standard | Stage-2 |
| Standard Bucket Capacity | 1.3 m³ |
| Overall Dimensions (L×W×H) | 6500 × 2080 × 2950 mm |
| Bucket Width | 2,250 mm |
| Max. Unloading Height | 3,800 mm |
| Unloading Reach | 600 mm |
| Bucket Pin Height | 4,390 mm |
| Min. Ground Clearance | 380 mm |
| Wheelbase / Track Width | 2700 mm / 1690 mm |
| Min. Turning Radius (Rear) | 5,200 mm |
| Axle / Tire Model | LG2.8T Large Wheel-Side / 16/70-24 |
