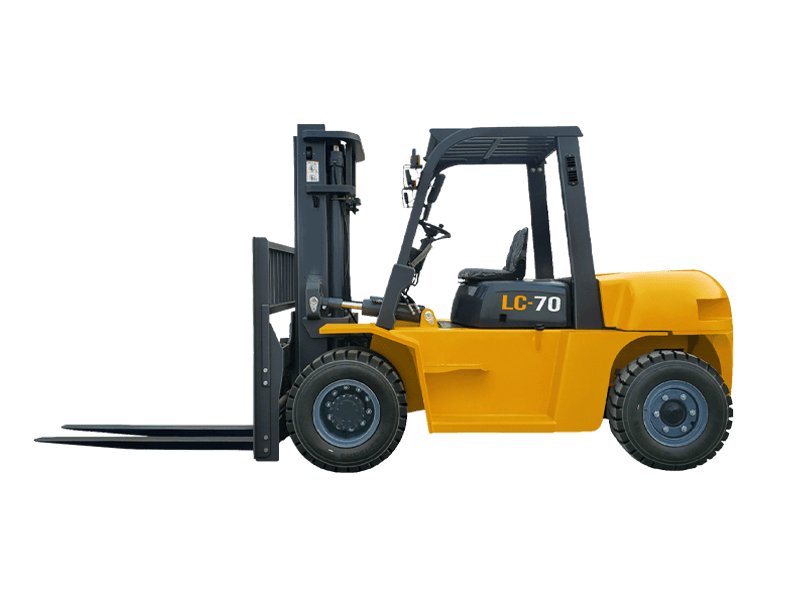

7-Ton Heavy-Duty Diesel Forklift | LC-70 Series
Unrivaled Lifting Capacity, Industrial Rigidity, and Heavy-Duty Performance.
When your material handling operations move beyond standard warehouse capacities, the LC-70 7-Ton Diesel Forklift delivers the massive power and structural integrity required for heavy industrial applications. Engineered with a 7,000kg (7-ton) rated load capacity at a standard 600mm load center, and powered by the high-torque Quanchai 4J1-115C32 engine, the LC-70 is purpose-built for ports, steel mills, marble/granite yards, timber processing, and heavy equipment manufacturing.
Key Performance Advantages
- Massive 7-Ton Lifting Power: Engineered to comfortably transport payloads up to 7,000kg with an industry-standard 600mm load center, ensuring high stability when moving oversized cargo and heavy machinery parts.
- High-Torque Engine Performance: Driven by the reliable Quanchai 4J1-115C32 diesel engine, providing exceptional torque at low RPMs, excellent fuel efficiency, and quick throttle response under peak loading conditions.
- Heavy-Duty Four-Wheel Tread: Equipped with high-capacity 8.25-15-14PR heavy-duty pneumatic tires on both front and rear axles, combined with an extended 2,250mm wheelbase for superior weight distribution and ground traction.
- Structural Stability & Durability: Featuring a robust operating weight of 9,600kg and thick 65mm fork arms, the LC-70 prevents chassis deflection and delivers uncompromising stability on rough outdoor industrial yards.
Technical Specifications
| Technical Parameter | Specification |
| Model | LC-70 |
| Rated Lifting Load | 7,000 kg |
| Load Center Distance | 600 mm |
| Free Lifting Height | 210 mm |
| Overall Length (With / Without Fork) | 4,810 mm / 3,680 mm |
| Overall Width | 1,970 mm |
| Overhead Guard Height | 2,500 mm |
| Wheelbase | 2,250 mm |
| Tire Specification (Front / Rear) | 8.25-15-14PR / 8.25-15-14PR |
| Fork Size | 1,220 × 150 × 65 mm |
| Forklift Operating Weight | 9,600 kg |
| Engine Model | Quanchai 4J1-115C32 |
Why Choose the LC-70 for Your Fleet?
- Maximum Cost Efficiency (High ROI): Provides the lifting strength of heavy industrial machinery at competitive purchasing and lower lifecycle maintenance costs.
- Designed for Extreme Duty Cycles: High-capacity cooling system and heavy-gauge mast steel guarantee continuous round-the-clock performance without overheating.
- Spacious Ergonomic Cab: Elevated 2,500mm overhead guard and expansive glass view deliver all-around visibility, keeping operators safe and comfortable during intense shifts.
Request a Factory-Direct Quote
Searching for factory-direct wholesale pricing, flat-rack/container shipping options, or specialized attachments (side shifter, fork positioner, paper roll clamp) for the LC-70 7-Ton Diesel Forklift? Contact our technical export sales team today!
