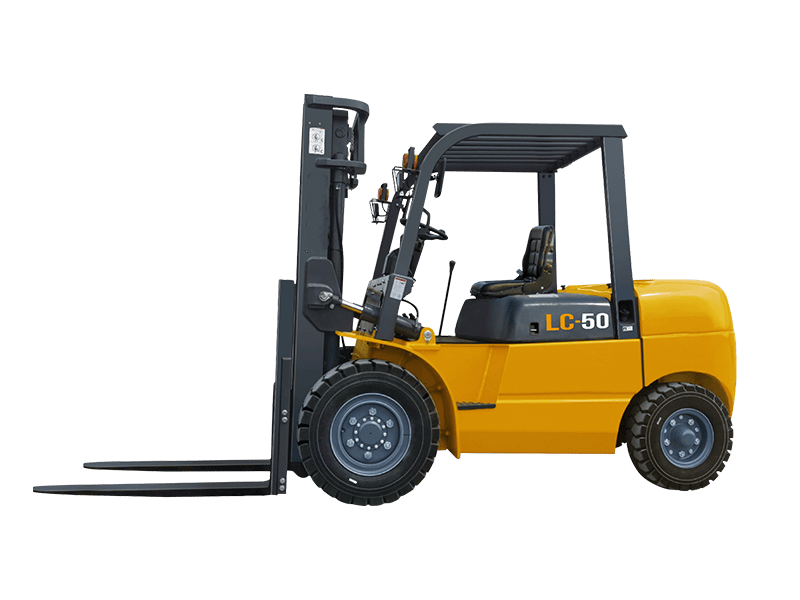

5-Ton Heavy-Duty Diesel Forklift | LC-50 Series
Unmatched Power, Industrial Stability, and Heavy-Duty Performance.
Designed to excel in demanding industrial environments, the LC-50 5-Ton Diesel Forklift is engineered to move massive loads with precision and safety. Powered by the high-torque Quanchai 4C6-85U32 engine and built with a heavy-duty frame featuring a 5,000kg (5-ton) rated load capacity, the LC-50 is the ultimate solution for ports, stone yards, steel fabrication plants, and heavy manufacturing hubs.
Key Performance Advantages
- Heavy-Duty 5-Ton Lifting Power: Safely handles up to 5,000kg payloads at a 500mm load center, providing rock-solid stability for oversized machinery, steel coils, and heavy construction materials.
- High-Torque Quanchai Powertrain: Equipped with the powerful Quanchai 4C6-85U32 engine, delivering high low-end torque, excellent fuel economy, and outstanding performance during continuous duty cycles.
- Extended 2000mm Wheelbase: Built with an extended 2,000mm wheelbase and ultra-wide 300-15 front tires to ensure maximum ground traction and structural stability across uneven outdoor terrains.
- Operator Safety & Ergonomics: Features an elevated 2,240mm overhead guard, expanded operator compartment, and panoramic mast layout to provide maximum overhead protection and all-around line of sight.
Technical Specifications
| Technical Parameter | Specification |
| Model | LC-50 |
| Rated Lifting Load | 5,000 kg |
| Load Center Distance | 500 mm |
| Free Lifting Height | 160 mm |
| Overall Length (With / Without Fork) | 4,190 mm / 3,120 mm |
| Overall Width | 1,480 mm |
| Overhead Guard Height | 2,240 mm |
| Wheelbase | 2,000 mm |
| Tire Specification (Front / Rear) | 300-15-20PR / 7.00-12-12PR |
| Fork Size | 1,070 × 150 × 55 mm |
| Forklift Operating Weight | 4,960 kg |
| Engine Model | Quanchai 4C6-85U32 |
Why Choose the LC-50 for Your Operations?
- Maximum ROI & Low TCO: Combines heavy-duty lifting performance with manageable maintenance costs, delivering outstanding lifetime return on investment.
- Rugged All-Terrain Handling: Heavy-duty 20PR front pneumatic tires and high chassis clearance allow effortless movement on gravel yards, unpaved docks, and outdoor industrial parks.
- Engineered for Reliability: Reinforced steel chassis, heavy-duty mast channels, and durable hydraulics guarantee minimal downtime under continuous heavy loading.
Request a Factory Direct Quote
Looking for factory-direct wholesale pricing, container shipping schedules, or custom attachments (side shifter, paper roll clamp, fork positioner) for the LC-50 5-Ton Diesel Forklift? Contact our technical export sales team today for an instant quote!
