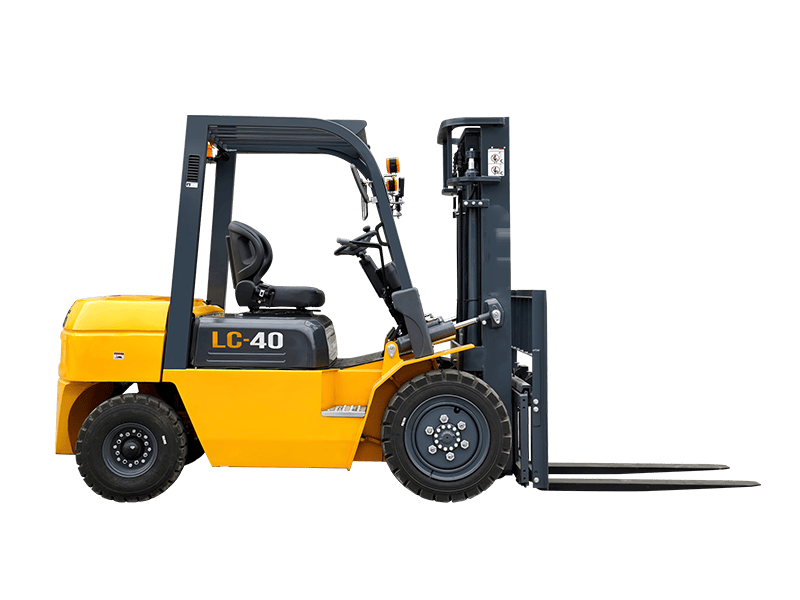

4-Ton Heavy-Duty Diesel Forklift | LC-40 Series
Heavy-Duty Lifting Power Meets Precision Maneuverability.
When standard medium-duty forklifts hit their limit, the LC-40 4-Ton Diesel Forklift steps up to master demanding material handling applications. Engineered with a powerful 4,000kg (4-ton) rated capacity and driven by the high-torque Quanchai 4C4-50V31 engine, the LC-40 delivers outstanding lifting stability, rugged durability, and reliable fuel efficiency for heavy manufacturing, timber, stone yards, logistics hubs, and construction sites.
Key Performance Advantages
- High-Capacity Heavy Lifting: Designed to handle up to 4,000kg loads at a standard 500mm load center, providing the extra margin needed for oversized cargo and heavy equipment parts.
- Reliable Quanchai Engine Power: Powered by the proven Quanchai 4C4-50V31 engine, offering robust torque output at low speeds, efficient fuel consumption, and easy global spare parts maintenance.
- Extended Wheelbase for Superior Stability: Built with a generous 1,900mm wheelbase and a solid 4,950kg operating weight to ensure exceptional ground stability and traction on tough industrial outdoor surfaces.
- Ergonomic & Safety-Focused Overhead Guard: Features an elevated 2,180mm overhead guard and optimized mast layout to grant the operator clear line-of-sight visibility and all-day working comfort.
Technical Specifications
| Technical Parameter | Specification |
| Model | LC-40 |
| Rated Lifting Load | 4,000 kg |
| Load Center Distance | 500 mm |
| Free Lifting Height | 150 mm |
| Overall Length (With / Without Fork) | 4,000 mm / 2,930 mm |
| Overall Width | 1,290 mm |
| Overhead Guard Height | 2,180 mm |
| Wheelbase | 1,900 mm |
| Tire Specification (Front / Rear) | 250-15-16PR / 7.00-12-12PR |
| Fork Size | 1,070 × 150 × 50 mm |
| Forklift Operating Weight | 4,950 kg |
| Engine Model | Quanchai 4C4-50V31 |
Why Choose the LC-40 for Your Operation?
- Maximum Value & Efficiency: Bridges the gap between 3.5-ton and 5-ton forklifts, offering heavy-duty lifting performance at lower purchasing and operational costs.
- Rugged Outdoor Performance: Equipped with wide 250-15 heavy-duty front pneumatic tires to easily navigate unpaved terrain, gravel yards, and steep loading ramps.
- Low Maintenance Downtime: Engineered with a wide-opening engine compartment cover and accessible daily check points to keep routine maintenance quick and hassle-free.
Request a Factory Direct Quote
Interested in bulk purchasing, container shipping options, or specialized attachments (side shifter, positioner, or 3-stage full free mast) for the LC-40 4-Ton Diesel Forklift? Contact our technical export team today for instant pricing!
