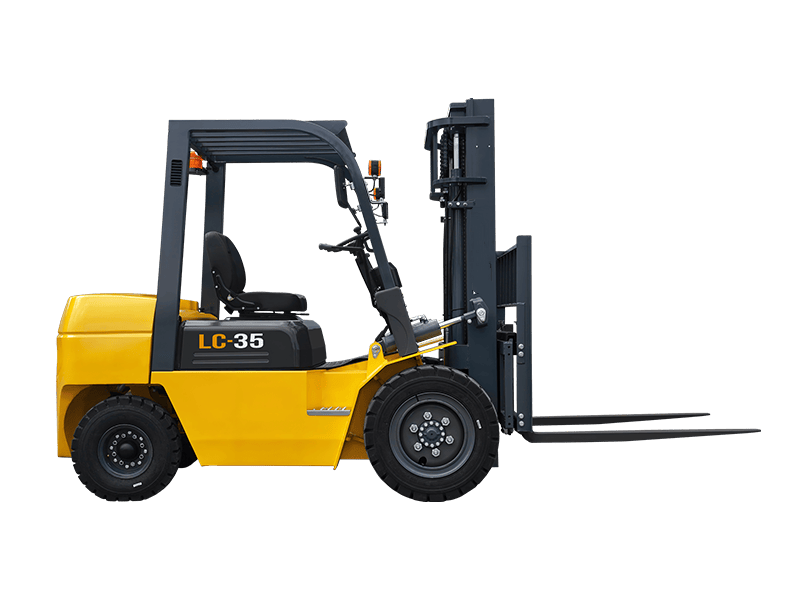

3.5-Ton Heavy-Duty Diesel Forklift | LC-35 Series
Superior Lifting Margin, Maximum Torque, and Uncompromised Durability.
When standard 3-ton forklifts fall short of your demanding heavy-lifting requirements, the LC-35 3.5-Ton Diesel Forklift delivers the perfect balance of extra capacity and operational flexibility. Built with a robust 3,500kg (3.5-ton) rated load capacity and powered by the reliable Quanchai 4C2-50V32 engine, the LC-35 handles heavier industrial loads with ease across logistics parks, construction sites, timber yards, and manufacturing facilities.
Key Performance Advantages
- Extended Lifting Capacity: Provides 3,500kg capacity at a 500mm load center, offering extra lifting margin and stability for heavy palletized loads and machinery components.
- Proven Quanchai Powertrain: Driven by the dependable Quanchai 4C2-50V32 diesel engine, delivering strong low-RPM torque, high thermal efficiency, and easy global spare parts availability.
- Heavy-Duty Reinforced Frame: Weighing 4,500kg with reinforced 50mm thick forks, the LC-35 ensures maximum rigidity, stability, and operator safety during high-load operations.
- Agile & Operator-Centric: Designed with a 1,700mm wheelbase and ergonomic operator compartment with an overhead guard height of 2,090mm to optimize safety, visibility, and long-shift comfort.
Technical Specifications
| Technical Parameter | Specification |
| Model | LC-35 |
| Rated Lifting Load | 3,500 kg |
| Load Center Distance | 500 mm |
| Free Lifting Height | 160 mm |
| Overall Length (With / Without Fork) | 3,763 mm / 2,693 mm |
| Overall Width | 1,225 mm |
| Overhead Guard Height | 2,090 mm |
| Wheelbase | 1,700 mm |
| Tire Specification (Front / Rear) | 28×9-15-14PR / 6.5-10-10PR |
| Fork Size | 1,070 × 125 × 50 mm |
| Forklift Operating Weight | 4,500 kg |
| Engine Model | Quanchai 4C2-50V32 |
Why Choose the LC-35 for Your Fleet?
- High Return on Investment: Low operational costs paired with heavy-duty durability make the LC-35 one of the most cost-effective 3.5t forklifts on the global market.
- Versatile Outdoor & Indoor Performance: Robust pneumatic tires and high ground stability allow seamless transitioning between warehouse loading bays and outdoor gravel yards.
- Easy Maintenance Access: Wide-opening engine hood and centralized component layout allow quick daily inspections and reduced routine maintenance downtime.
Request a Quote / Factory-Direct Inquiry
Looking for factory-direct wholesale prices, sea freight estimations, or custom attachments (side shifter, paper roll clamp, 3-stage full free mast) for the LC-35 3.5-Ton Forklift? Contact our technical sales team today!
