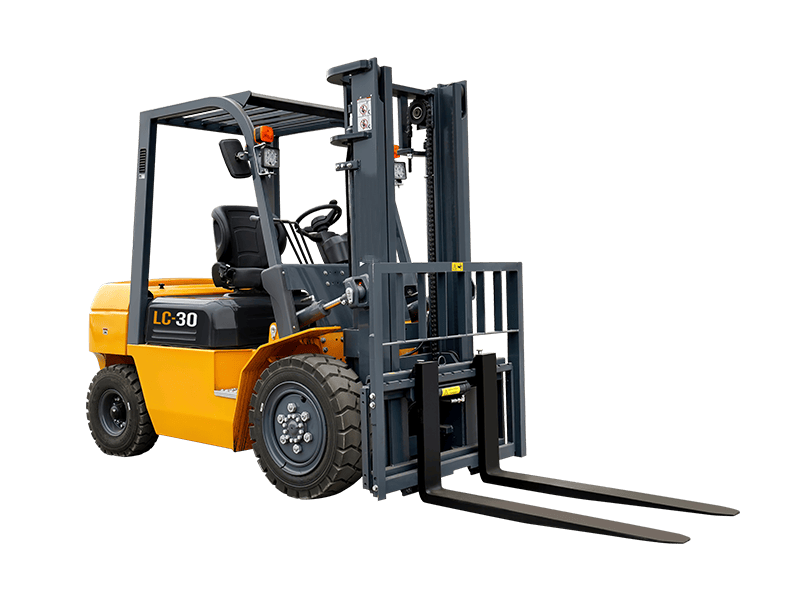

3-Ton Industrial Diesel Forklift | LC-30 Series
The Ultimate Workhorse for Material Handling — High Efficiency, Durability & Performance.
The LC-30 3-Ton Diesel Forklift is engineered to be the backbone of your material handling operations. Combining a 3,000kg (3-ton) rated capacity with a high-torque Quanchai 4C2-50V32 engine, the LC-30 delivers exceptional power, outstanding fuel efficiency, and seamless operation across warehousing, manufacturing, construction sites, and logistics hubs.
Key Performance Advantages
- Industry-Standard Payload Capacity: Built to comfortably lift up to 3,000kg with a 500mm load center, making it ideal for standard pallet loads and heavy industrial crates.
- Proven Quanchai Powerhouse: Equipped with the reliable Quanchai 4C2-50V32 diesel engine, offering impressive low-end torque, easy maintenance, and long service life.
- Enhanced Stability & Traction: Features robust front tires (28×9-15-14PR) and a well-balanced 4,250kg operating weight, ensuring maximum stability on smooth warehouse floors or uneven outdoor surfaces.
- Comfort & Ergonomics: High-visibility mast design and a spacious operator compartment with a 2,090mm overhead guard protect operators while minimizing fatigue over long shifts.
Technical Specifications
| Technical Parameter | Specification |
| Model | LC-30 |
| Rated Lifting Load | 3,000 kg |
| Load Center Distance | 500 mm |
| Free Lifting Height | 160 mm |
| Overall Length (With / Without Fork) | 3,752 mm / 2,682 mm |
| Overall Width | 1,225 mm |
| Overhead Guard Height | 2,090 mm |
| Wheelbase | 1,700 mm |
| Tire Specification (Front / Rear) | 28×9-15-14PR / 6.5-10-10PR |
| Fork Size | 1,070 × 125 × 45 mm |
| Forklift Operating Weight | 4,250 kg |
| Engine Model | Quanchai 4C2-50V32 |
Why Choose the LC-30 for Your Business?
- Unrivaled ROI: Low initial investment paired with low fuel consumption and affordable spare parts yields an exceptional total cost of ownership (TCO).
- Versatile Material Handling: Perfectly designed for loading/unloading shipping containers, outdoor yard storage, and heavy production lines.
- Heavy-Duty Construction: Reinforcing high-stress areas guarantees high structural integrity under continuous heavy loads.
Request a Quote / Factory-Direct Inquiry
Searching for factory-direct wholesale pricing, container loading plans, or custom mast options (2-stage / 3-stage full free mast) for the LC-30 3-Ton Forklift? Contact our technical sales experts now for a quick quotation!
