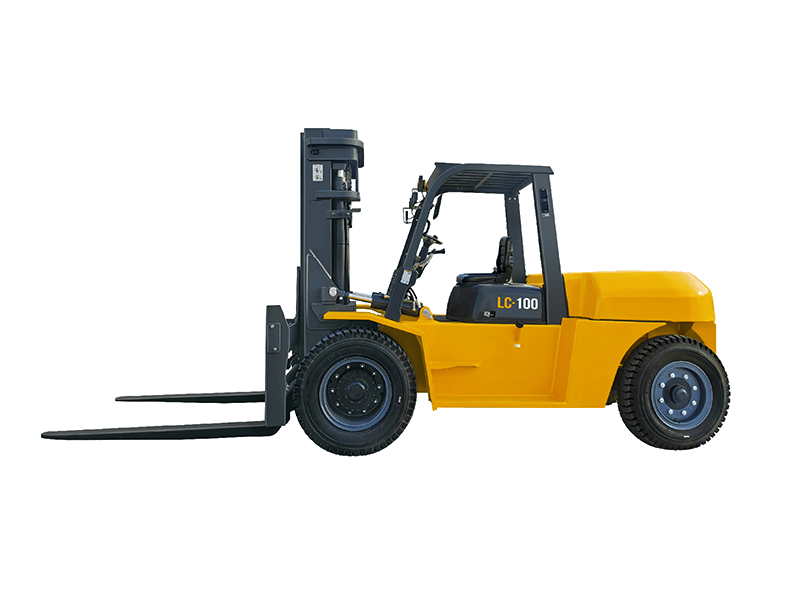

Heavy-Duty Performance Redefined: Meet the LC-100 10-Ton Diesel Forklift
When your operations demand raw power, absolute reliability, and unyielding durability, the LC-100 10-Ton Heavy Duty Diesel Forklift delivers. Engineered for heavy industrial applications—from lumber yards and ports to steel mills and large-scale manufacturing—the LC-100 combines high lifting capacity with precision control, ensuring your heaviest material handling tasks are executed safely and efficiently.
Key Product Highlights
- Robust 10-Ton Lifting Capacity: Engineered with a 10,000kg rated lifting load and a 600mm load center distance, the LC-100 effortlessly handles oversized, heavy pallets and cargo.
- Powerful & Fuel-Efficient Engine: Powered by the high-performance Quanchai 4J1-115C32 engine, delivering dependable torque, lower emissions, and optimized fuel economy under heavy continuous operation.
- Exceptional Stability & Clearance: Featuring an operating weight of 12,410kg, a wide stance (2,245mm width), and a 250mm minimum ground clearance, it excels on rough terrain and uneven industrial yards.
- Operator Comfort & Safety: Designed with an overhead guard height of 2,570mm and a rugged heavy-duty chassis, protecting operators while maximizing all-around visibility during complex loading cycles.
Technical Specifications
Optimize your fleet planning with the complete specification breakdown of the LC-100:
| Technical Specification | Model LC-100 Details |
| Model | LC-100 |
| Rated Lifting Load | 10,000 kg (10 Ton) |
| Load Center Distance | 600 mm |
| Free Lifting Height | 200 mm |
| Overall Length (With/Without Fork) | 5,497 mm / 4,277 mm |
| Overall Width | 2,245 mm |
| Overhead Guard Height | 2,570 mm |
| Wheelbase | 2,800 mm |
| Tire Specifications (Front / Rear) | 9.00-20NHS / 9.00-20NHS |
| Standard Fork Size | 1,520 × 175 × 85 mm |
| Forklift Net Weight | 12,410 kg |
| Engine Model | Quanchai 4J1-115C32 |
| Min. Ground Clearance | 250 mm |
Why Global Importers Choose LC-100
- Rugged Durability: Every component—from the heavy-duty 9.00-20NHS tires to the reinforced 1,520mm forks—is built to withstand the harshest working conditions.
- Cost-Effective Maintenance: Equipped with globally trusted Quanchai engine architecture, sourcing spare parts and conducting routine maintenance is straightforward and economical, reducing total cost of ownership (TCO).
- Versatile Application: Whether handling shipping containers, heavy machinery components, or bulk building materials, the LC-100 adapts seamlessly to your operational workflow.
