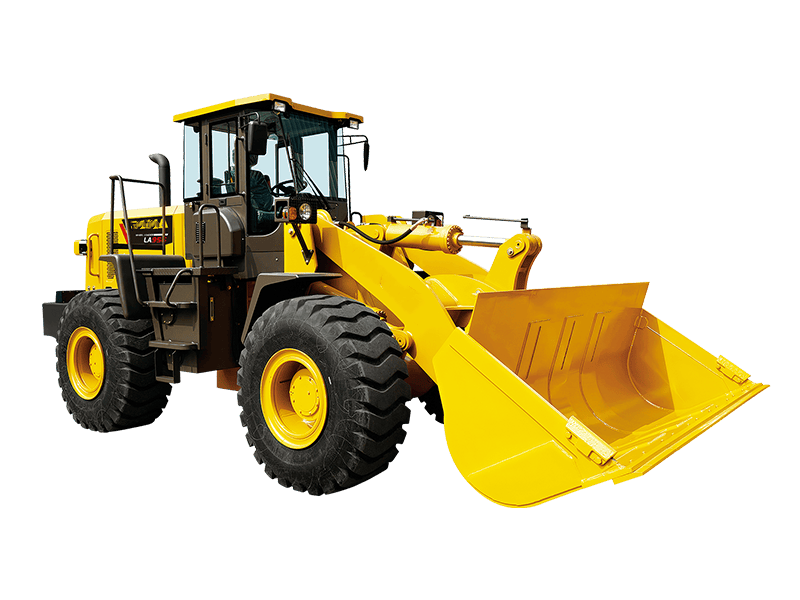

L3500 Wheel Loader: Commercial-Grade 3.5 Ton Heavyweight
The L3500 Wheel Loader is built for large-scale earthmoving, mining, aggregate handling, and heavy construction tasks. Driven by a high-torque 92 kW Weichai Deutz 6105 Turbo engine, this nearly 10-ton machine (9,980 kg operating weight) delivers a massive 3,500 kg payload capacity paired with a spacious 2.2 m³ standard bucket. Featuring heavy-duty 3.0T large wheel-side axles, exceptional 1,250 mm dumping reach, and rugged 17.5-25 industrial tires, the L3500 ensures peak productivity and durability under extreme loading conditions.
Key Features & Selling Points
- Heavy-Duty Weichai Turbo Power: Powered by a reliable 92 kW Weichai Deutz 6105 Turbo diesel engine, generating maximum breakout force and fast cycle times.
- Commercial 3.5-Ton Capacity: Engineered with a 3,500 kg payload and a high-volume 2.2 m³ bucket, significantly reducing loading cycles for high-tonnage operations.
- Extraordinary Unloading Reach: Features a 3,500 mm dumping height paired with an industry-leading 1,250 mm reach, preventing truck-side collisions and ensuring center-balanced loading.
- Rugged Heavy Chassis: Built on a 2,760 mm wheelbase, 440 mm ground clearance, and 3.0T heavy wheel-side axles to withstand continuous heavy-duty quarry and job site stress.
Specifications
| Specification Item | Metric Parameter |
| Rated Load Capacity | 3,500 kg |
| Operating Weight | 9,980 kg |
| Engine Model / Power | Weichai Deutz 6105 Turbo / 92 kW |
| Emission Standard | Stage-2 |
| Standard Bucket Capacity | 2.2 m³ |
| Overall Dimensions (L×W×H) | 7370 × 2250 × 3250 mm |
| Bucket Width | 2,350 mm |
| Max. Unloading Height | 3,500 mm |
| Unloading Reach | 1,250 mm |
| Bucket Pin Height | 4,330 mm |
| Min. Ground Clearance | 440 mm |
| Wheelbase / Track Width | 2760 mm / 1850 mm |
| Min. Turning Radius (Rear) | 5,500 mm |
| Axle / Tire Model | 3.0T Large Wheel-Side / 17.5-25 |
