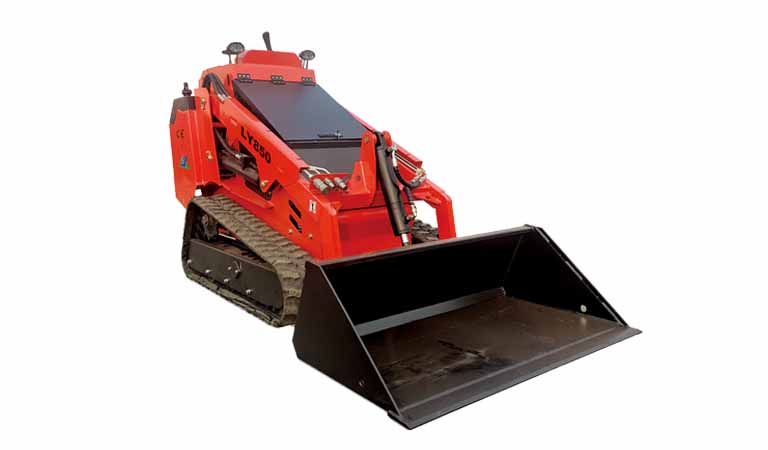

LY850 Compact Skid Steer Loader

The LY850 Mini Skid Steer Loader is engineered to deliver high-performance versatility in ultra-compact spaces. Built with a rugged frame, superior hydraulic breakout force, and an eco-friendly emissions system, the LY850 is the ultimate workhorse for landscaping, residential construction, trenching, and municipal maintenance.

Key Features & Highlights

• Reliable Kubota® D1105 Diesel Engine: Equipped with a Japanese-engineered 18.2 kW (24.8 HP) Kubota D1105 engine, the LY850 meets strict EPA Tier 4 / EU Stage V emission standards. It provides smooth power, low noise, exceptional fuel economy, and worldwide parts availability.
• Outstanding Maneuverability in Tight Spaces: With a narrow machine width of just 1,006 mm and a tight front turning radius of 970 mm (without bucket), the LY850 easily navigates narrow garden gates, indoor demolition sites, and congested urban job sites.
• Strong Payload & Powerful Breakout Force: Featuring a rated operating capacity of 400 kg (882 lbs) and a maximum breakout force of ≥7 kN, this mini loader handles heavy earthmoving, gravel, and pallet loading tasks effortlessly.
• Standard Quick-Attach Coupler System: Compatible with a wide variety of hydraulic attachments, including augers, trenchers, hydraulic breakers, sweepers, and grapple buckets, transforming one machine into a multi-purpose fleet.
• Operator-Centric Ergonomics: Designed with a stand-on platform featuring anti-slip padding, responsive dual-joystick controls, and an intuitive dashboard, reducing operator fatigue during long working shifts.

Technical Specifications

Performance & Operational Specifications

Technical Parameter	Metric	Imperial
Model	LY850	LY850
Operating Weight	1,330 kg	2,932 lbs
Rated Operating Capacity (ROC)	400 kg	882 lbs
Bucket Capacity	0.2 m³	0.26 yd³
Max. Travel Speed	5.6 km/h	3.5 mph
Max. Traction Force	≥ 12 kN	≥ 2,697 lbf
Max. Bucket Breakout Force	≥ 7 kN	≥ 1,573 lbf
Boom Lifting Time	7.0 s	7.0 s

Engine Specifications

Technical Parameter	Metric	Imperial
Engine Manufacturer / Model	Kubota® D1105	Kubota® D1105
Rated Output Power	18.2 kW @ 3000 RPM	24.8 HP @ 3000 RPM
Engine Displacement	1.123 L	68.5 cu in
Emission Compliance	EU Stage V / EPA Tier 4	EU Stage V / EPA Tier 4

Dimensional Specifications

Diagram Ref.	Specification Item	Metric (mm/°)	Imperial (in/°)
A	Overall Operating Height	2,800 mm	110.2 in
B	Height to Bucket Hinge Pin	2,159 mm	85.0 in
C	Height to Top of Cab / Platform	1,685 mm	66.3 in
D	Height to Bottom of Level Bucket	2,831 mm	111.5 in
E	Overall Length without Bucket	2,165 mm	85.2 in
F	Overall Length with Standard Bucket	2,831 mm	111.5 in
G	Dumping Angle at Max. Height	30°	30°
H	Max. Dumping Height	1,685 mm	66.3 in
I	Dumping Reach at Max. Height	611 mm	24.1 in
J	Bucket Rollback Angle on Ground	30°	30°
K	Bucket Rollback Angle at Full Height	103°	103°
L	Wheelbase / Track Ground Length	1,149 mm	45.2 in
M	Min. Ground Clearance	258 mm	10.2 in
N	Angle of Departure	29°	29°
O	Front Turning Radius (without Bucket)	970 mm	38.2 in
P	Front Turning Radius (with Bucket)	1,496 mm	58.9 in
Q	Rear Turning Radius	1,496 mm	58.9 in
R	Rear Axle to Bumper Distance	910 mm	35.8 in
S	Tread Width (Standard Tires/Tracks)	826 mm	32.5 in
T	Overall Machine Width	1,006 mm	39.6 in
U	Standard Bucket Width	1,166 mm	45.9 in
