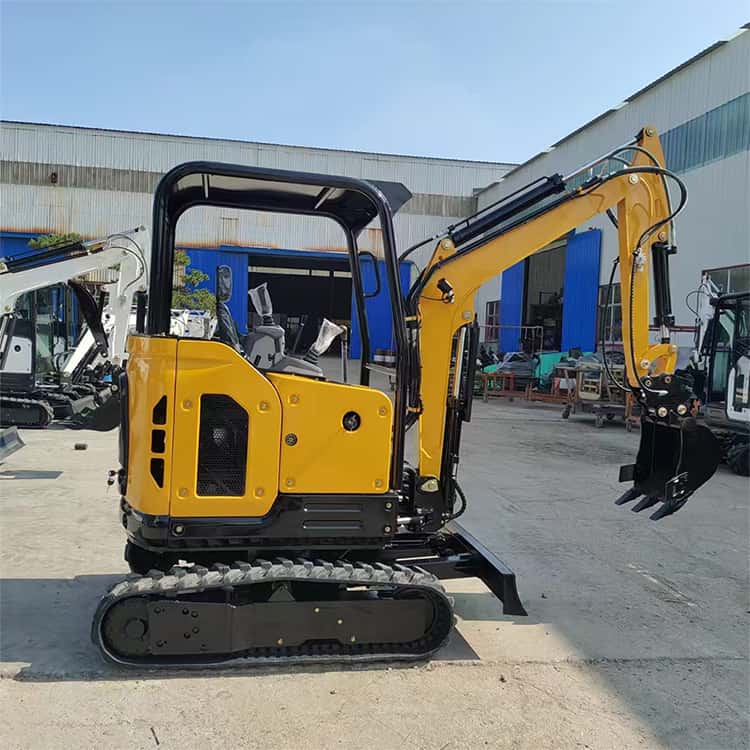

ZM20 Mini Excavator: Flagship 2.0-Ton Compact Digger with Cabin Option
Heavy-Duty 25 kW Engine with Retractable Track & Boom Swing Technology
The ZM20 Mini Excavator is a flagship 2.0-ton class compact digger designed for heavy-duty earthmoving, deep trenching, commercial construction, and all-weather applications. Powered by a high-output 25 kW Changchai 390 3-cylinder diesel engine (with optional Kubota 902 for global markets), the ZM20 delivers massive breakout force, swift hydraulic responsiveness, and relentless performance on tough job sites.
Engineered with advanced productivity features—including optional Retractable Tracks, Boom Swing function, an enclosed Operator Cabin, and Air Conditioning—the ZM20 provides premium operator comfort and versatility under any site condition or extreme climate.
Key Performance Advantages
1. High-Output 25 kW Powerhouse & Kubota Option
Driven by a powerful 25 kW engine, the ZM20 offers maximum digging torque and superior hydraulic pump flow. For strictly regulated or premium-tier international markets, the ZM20 can be upgraded with a genuine Kubota 902 diesel engine.
2. Retractable Track & Boom Swing (Optional)
- Retractable Tracks: Allows the operator to narrow the undercarriage for tight gate passage and extend it to a wide 1,300 mm chassis total width for maximum digging and lifting stability.
- Boom Swing: Enables offset digging along walls, fence lines, and building foundations without repositioning the tracks.
3. Extended 2100mm Dig Depth & Working Reach
With a maximum 2,100 mm digging depth, 3,150 mm digging radius, and an elevated 2,690 mm digging height, the ZM20 easily completes heavy utility trenches, deep pool foundations, and high-sided dump truck loading (1,780 mm dumping height).
4. All-Weather Cabin & Air Conditioner Options
For year-round operating comfort in freezing winters or scorching summers, the ZM20 can be equipped with a fully enclosed, sound-insulated Operator Cabin and an integrated Air Conditioning (A/C) system.
Technical Specifications
| Category | Parameter / Feature | Specification Value |
| Overall Dimensions | Transport Length | 2,350 mm |
| Total Width (B) | 1,100 mm | |
| Total Height (C) | 2,240 mm | |
| Platform Width (D) | 990 mm | |
| Chassis Total Width (E) | 1,300 mm | |
| Track Width (F) | 180 mm | |
| Wheelbase (G) | 1,082 mm | |
| Platform Ground Clearance (I) | 400 mm | |
| Operating Range | Max. Digging Height (A) | 2,690 mm |
| Max. Dumping Height | 1,780 mm | |
| Max. Digging Depth (C) | 2,100 mm | |
| Max. Digging Radius (E) | 3,150 mm | |
| Min. Swing Radius (F) | 1,587 mm | |
| Engine & Power | Standard Engine Brand | Changchai 390 (3-Cylinder Diesel) |
| Rated Engine Power Output | 25 kW @ 3600 RPM | |
| Optional Engine Upgrades | 385 / Kubota 902 Engine | |
| Special Configuration | Retractable Track & Boom Swing | Optional |
| Enclosed Cabin & Air Conditioner | Optional | |
| Bucket & Attachments | Standard Bucket Width | 400 mm |
Primary Applications
- Commercial & Highway Construction: Powerful earthmoving, roadway foundation prep, and pipe laying.
- All-Weather Municipal Projects: Enclosed cabin with A/C allows continuous operation during heavy rain, snow, or extreme summer heat.
- Tight Wall Digging: Optional boom swing offset allows trenching flush against existing structures.
- Contractor & High-End Rental Fleets: A premium 2.0-ton asset offering the highest rental returns and complete versatility.
Compatible Attachments
Expand your job site potential with quick-hitch attachments:
- Hydraulic Breaker Hammer: Driven by 25 kW high-pressure hydraulic flow for thick concrete and rock breaking.
- Earth Auger Drives: For utility pole foundations, solar panel piling, and fence post installation.
- Hydraulic / Mechanical Thumb Clip: Heavy-duty grabbing of timber, boulders, and demolition debris.
- Rake & Heavy-Duty Ripper: Easily tears through hard-packed clay, asphalt, and thick roots.
- Multiple Buckets: 200mm trenching, 400mm standard, and 800mm wide grading/tilting buckets.
Frequently Asked Questions (FAQ)
Q1: What are the benefits of the Retractable Track and Boom Swing options on the ZM20?
The Retractable Track allows you to narrow the machine for tight passage and expand the chassis to 1,300 mm for ultimate operating stability. The Boom Swing allows the arm to rotate independently, enabling side-trenching flush against walls or fences.
Q2: Is the ZM20 available with a Kubota engine for international markets?
Yes, while the Changchai 390 (25 kW) comes standard, we offer the Kubota 902 engine option to meet strict emission standards and global maintenance demands in North America, Europe, and Australia.
Q3: Can I order the ZM20 with an enclosed cabin and air conditioning?
Yes. We provide factory-installed enclosed operator cabins with full climate control (Heating & Air Conditioning), ensuring operator comfort and safety in all weather conditions.
