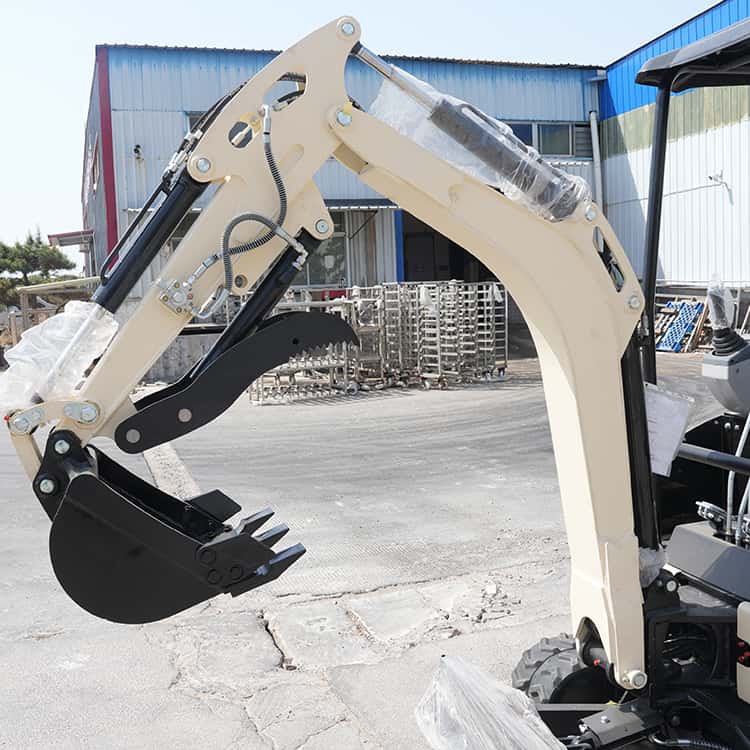

ZM18 Mini Excavator: Premium 1.8-Ton Digger with Kubota Engine
EPA Tier 4 & Euro Stage V Certified for Global Markets
The ZM18 Mini Excavator is a high-spec 1.8-ton class compact digger powered by a world-renowned Kubota D722 3-cylinder diesel engine. Delivering 10.2 kW of power at 2500 RPM, the ZM18 fully complies with EPA Tier 4, Euro Stage V, and China IV emissions regulations, making it the ideal choice for contractors, equipment dealers, and rental yards in North America, Europe, and Australia.
Built with an extended 3150 mm maximum digging radius, a high 2690 mm digging height, and a ground-clearing 400 mm chassis platform clearance, the ZM18 delivers exceptional hydraulic control, fuel efficiency, and long-term resale value.
Key Performance Advantages
1. Genuine Kubota D722 Diesel Engine
Powered by the industry-standard Kubota D722 3-cylinder engine, the ZM18 offers ultra-smooth power output, low vibration, and superior fuel economy. Kubota’s worldwide service network ensures hassle-free access to spare parts and easy local maintenance.
2. Full EPA Tier 4 & Euro Stage V Compliance
Designed to meet the strictest environmental regulations in North America and Europe, the ZM18 allows easy import compliance and job site approval in zero-emission or low-emission urban zones.
3. High Reach & Powerful Geometry
Featuring an optimized boom structure, the ZM18 achieves a 2,690 mm maximum digging height and a 3,150 mm maximum digging radius, allowing effortless truck loading (1,700 mm dumping height) and precise trenching (1,715 mm digging depth).
4. Heavy-Duty Chassis & High Ground Clearance
Built on a wide 1,100 mm chassis with an extended 1,082 mm wheelbase and 400 mm ground clearance, the ZM18 guarantees excellent stability on rough slopes and easy navigation over rocks and muddy job sites.
Technical Specifications
| Category | Parameter / Feature | Specification Value |
| Overall Dimensions | Transport Length | 2,350 mm |
| Total Width (B) | 1,100 mm | |
| Total Height (C) | 2,240 mm | |
| Platform Width (D) | 990 mm | |
| Chassis Total Width (E) | 1,100 mm | |
| Track Width (F) | 180 mm | |
| Wheelbase (G) | 1,082 mm | |
| Track Gauge (H) | 895 mm | |
| Platform Ground Clearance (I) | 400 mm | |
| Operating Range | Max. Digging Height (A) | 2,690 mm |
| Max. Dumping Height (B) | 1,700 mm | |
| Max. Digging Depth (C) | 1,715 mm | |
| Max. Digging Radius (E) | 3,150 mm | |
| Min. Swing Radius (F) | 1,507 mm | |
| Engine & Power | Standard Engine Brand | Kubota D722 (3-Cylinder Diesel) |
| Emission Certification | EPA Tier 4 / Euro Stage V / China IV | |
| Rated Engine Power | 10.2 kW @ 2500 RPM | |
| Bucket Device | Standard Bucket Width | 400 mm |
Primary Applications
- Urban Municipal & Construction: Compliant with EU/US low-emission standards for city utility repair and street building.
- Commercial Landscaping & Grading: Smooth hydraulic responsiveness for delicate ground leveling, post-hole augering, and pool digging.
- Contractor & Rental Fleets: The most sought-after machine spec for equipment rental hubs due to high global demand for Kubota-powered machinery.
- Agricultural Work: Trenching irrigation channels, handling fertilizer, and site cleaning around farms.
Compatible Attachments
- Hydraulic Breaker Hammer: Driven by smooth, steady Kubota hydraulic output.
- Earth Auger Drives: Ideal for fence post drilling and solar foundation installation.
- Hydraulic / Mechanical Thumb Clip: Precise grabbing of rocks, logs, and debris.
- Rake & Heavy-Duty Ripper: Easily tears through roots and hard ground.
- Buckets: 200mm trenching, 400mm standard, and 800mm wide grading/tilting buckets.
Frequently Asked Questions (FAQ)
Q1: Can the ZM18 be legally imported into the US, Canada, and Europe?
Yes. The ZM18 is equipped with a genuine Kubota D722 engine certified for EPA Tier 4 (USA/Canada) and Euro Stage V (Europe) standards, ensuring full customs compliance and job site legality.
Q2: What is the main advantage of choosing the Kubota D722 engine?
The Kubota D722 is famous worldwide for its extreme durability, low operating noise, minimal vibration, and fuel efficiency. Furthermore, Kubota parts and service networks are available globally.
Q3: How does the ZM18 compare to the ZM17 model?
While the ZM17 focuses on high-torque 19 kW 3-cylinder diesel performance for unregulated markets, the ZM18 focuses on premium global compliance (Kubota D722 + EPA/Euro V certification) with a higher digging height (2690mm) and optimized hydraulic control.
