| Parameter | Specification / Value |
| Transport Length | 2600 mm |
| Total Width B | 720 mm |
| Total Height C | 1300 mm |
| Platform Width D | 700 mm |
| Chassis Total Width E | 720 mm |
| Track Width F | 1500 mm (Note: The image “image_c49114.png” shows 150, typically 150mm) |
| Wheelbase G | 860 mm |
| Track Gauge H | 550 mm |
| Platform Ground Clearance I | 350 mm |
| Max. Digging Height A | 2460 mm |
| Max. Dumping Height B | 1730 mm |
| Max. Digging Depth C | 1400 mm |
| Max. Digging Radius E | 2490 mm |
| Min. Swing Radius F | 1400 mm |
| Standard Engine Brand | Koop 192F |
| Emission Standard | National II (China II) |
| Engine Power (KW) | 8 kW / 3600 RPM |
| Standard Bucket (MM) | 300 mm |
| Bucket Capacity ($M^3$) | 0.02 $m^3$ |
| Optional Engines | Changchai, Koop, Briggs & Stratton, Lithium Battery, Electric Motor |
High-Performance 0.8-Ton Micro Digger Engineered for Restricted Spaces

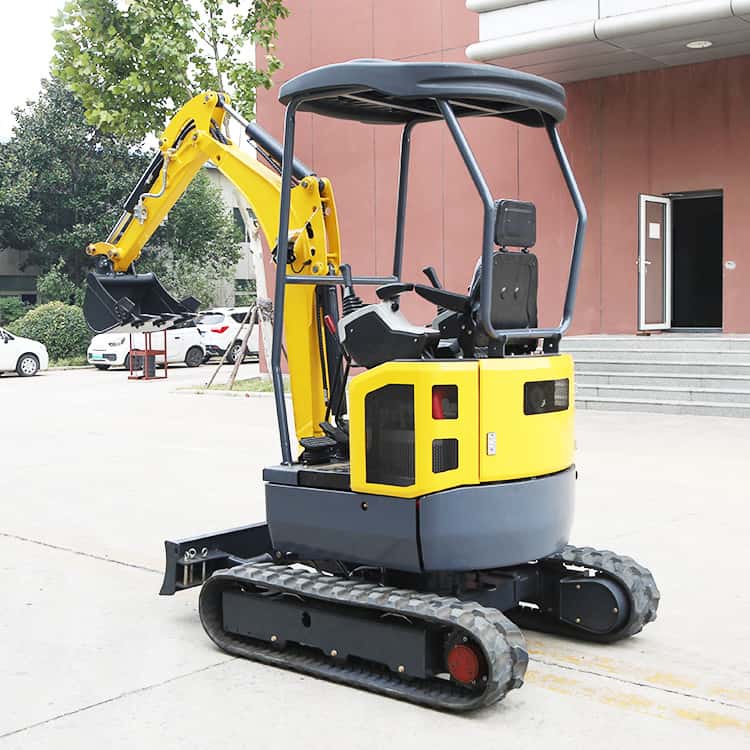

The ZM08 Mini Excavator is a compact, highly flexible 0.8-ton micro digger designed specifically for contractors, rental fleets, and property owners operating in constrained environments. Engineered with an ultra-narrow 720mm chassis width, the ZM08 effortlessly navigates through standard residential doorways, narrow garden gates, and tight indoor hallways.
Whether you are performing indoor demolition, trenching for municipal utilities, backyard landscaping, or farm maintenance, the ZM08 combines small-footprint maneuverability with continuous, reliable hydraulic power.
Key Features & Advantages
1. Ultra-Compact 720mm Width
With an overall width of just 720 mm, the ZM08 eliminates accessibility barriers. It eliminates the need for expensive manual labor in confined sites by allowing fully mechanized operation where standard mini excavators simply cannot enter.
2. Flexible Powertrain Configurations
To meet diverse regional emissions regulations and application demands, the ZM08 supports multiple engine choices:
- Standard Diesel: Single-cylinder Koop 192F / Changchai engine delivering reliable torque and fuel efficiency.
- EPA / Euro V Compliant Options: Premium Briggs & Stratton gasoline engine options available for North American and European markets.
- Zero-Emission Electric Options: Available with a Lithium Battery or Pure Electric Motor setup, ideal for noise-sensitive environments and indoor renovation projects without ventilation issues.
3. Excellent Working Range
Despite its compact structure, the ZM08 boasts a maximum digging depth of 1400 mm and a maximum digging height of 2460 mm, providing sufficient geometry for loading light trucks and digging utility trenches.
4. Easy Maintenance & Transport
Weighing under 1 ton, the ZM08 can be easily loaded onto standard light trailers or towed by small utility vans, significantly reducing your job site transport and logistics costs.
Versatile Applications
- Indoor Renovation & Demolition: Easily passes through doorway openings to break concrete floors or strip interior spaces.
- Landscaping & Gardening: Small ground pressure protects delicate lawns and garden paths while digging plant beds or drainage pipes.
- Trenching & Utilities: Perfect for laying electric cables, water pipes, and broadband lines in tight urban alleys.
- Agricultural & Farm Maintenance: Small enough to work inside greenhouses, barns, and orchard rows.
Optional Attachments & Accessories
Expand the versatility of your ZM08 with compatible quick-hitch attachments:
- Hydraulic Breaker / Hammer
- Rake & Ripper
- Augers for Post Hole Digging
- 200mm Trench Bucket & 600mm Grading Bucket
- Mechanical / Hydraulic Thumb Clip
Frequently Asked Questions (FAQ)
Q1: Can the ZM08 fit through a standard house door?
Yes. With an overall width of 720 mm, the ZM08 easily drives through standard interior/exterior doorways (which typically measure 800mm to 900mm wide).
Q2: Is the ZM08 available with Euro V or EPA Tier 4 engines?
Yes, we offer engine options such as Briggs & Stratton gasoline engines or zero-emission electric motor options to meet strictly regulated markets in Europe and North America.
Q3: What is the main benefit of choosing a Lithium Battery / Electric setup?
The electric ZM08 offers zero exhaust emissions, extremely low noise levels, and instant torque. It is specifically recommended for indoor jobs, underground sites, and night work in residential areas.
